Circular Vibrating Screen

Introduction
Parameters

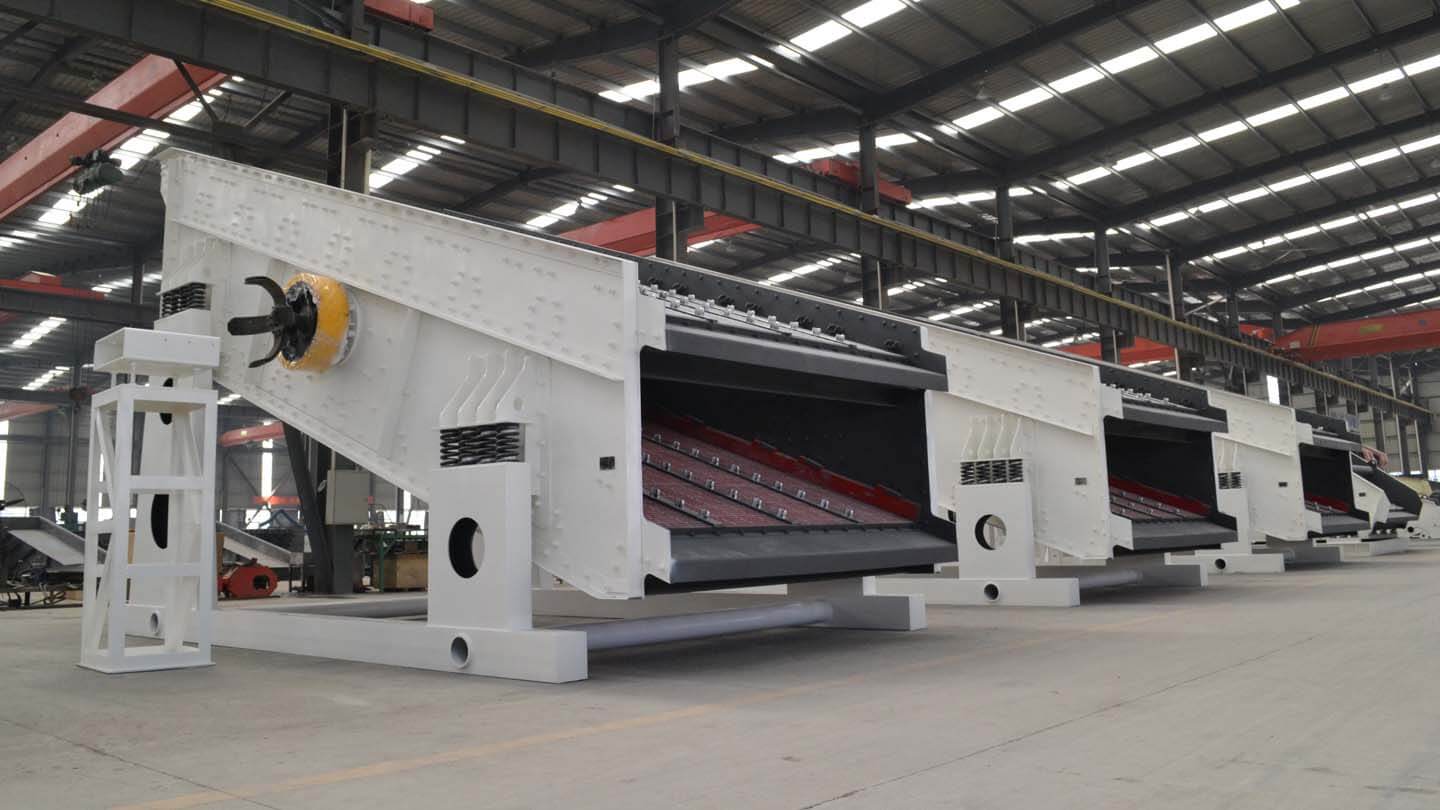

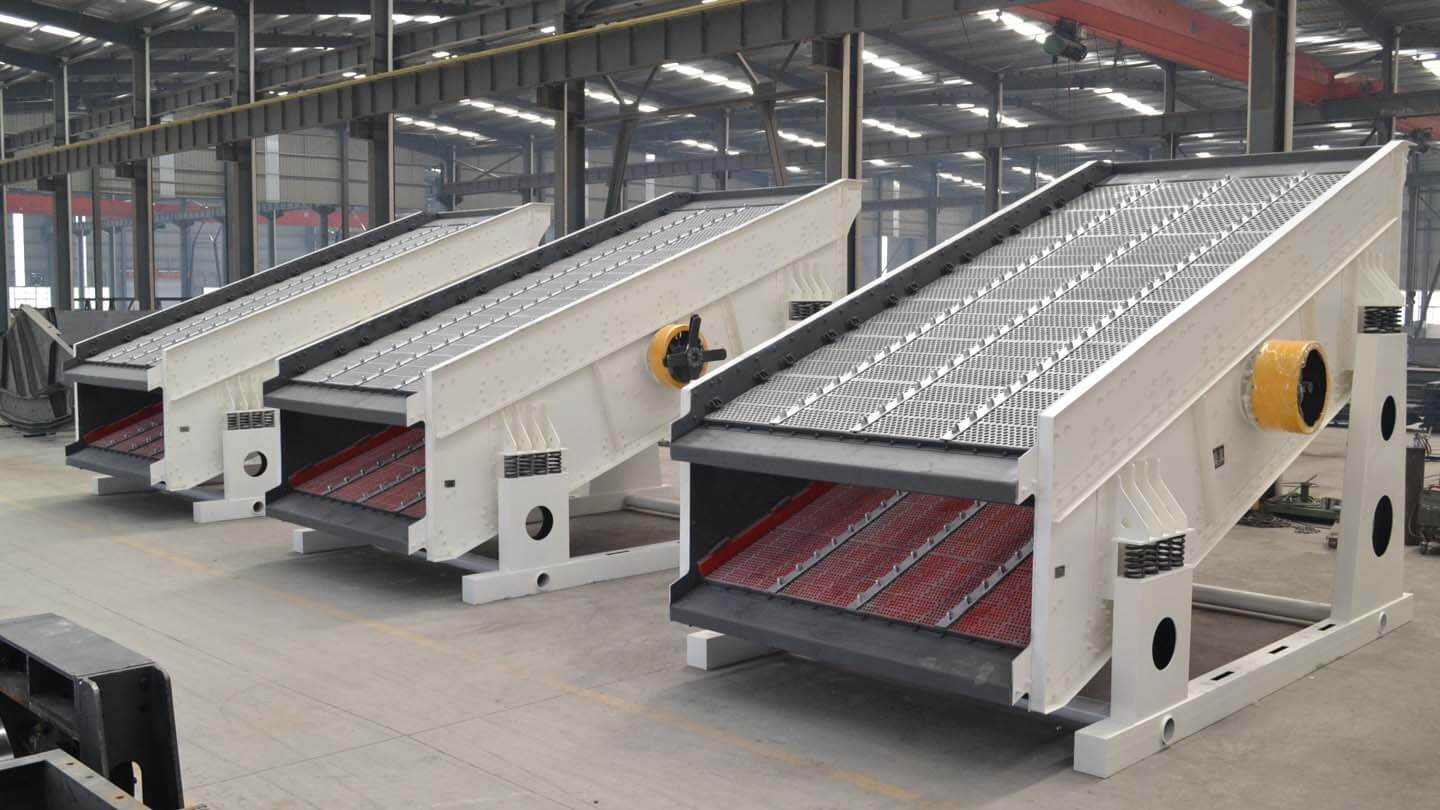

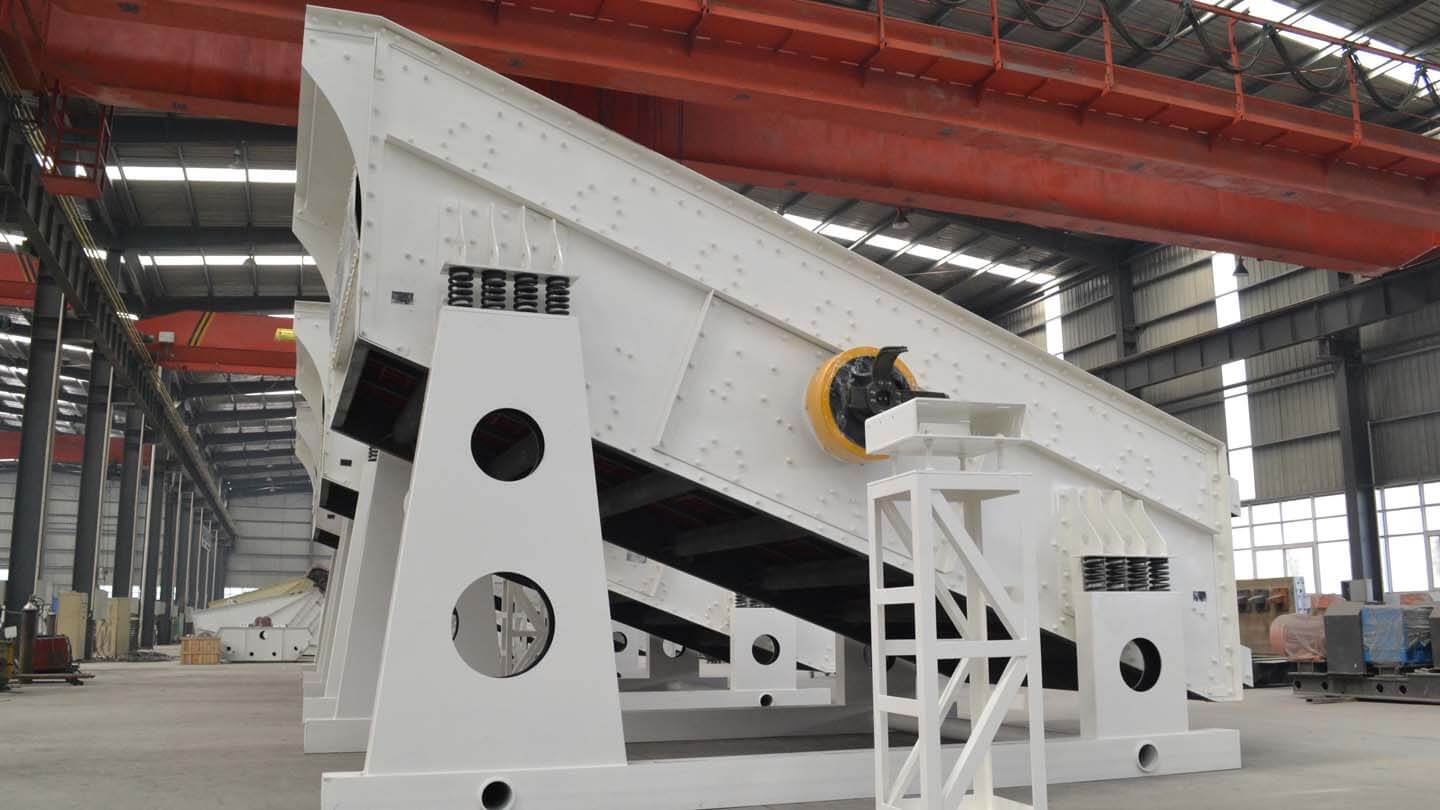

The Zhenyuan SYKH Circular Vibrating Screen delivers precision classification for non-ferrous metals, ferrous metals, and non-metallic mining. Its vibration frequency, amplitude, and tilt angle are engineered through decades of field experience and screening theory. This ensures unmatched material separation performance.

Developed with China University of Mining and Technology (China’s only vibration research institute), the screen integrates CREO 3D modeling, Ansys FEA, and Adams dynamics analysis. This guarantees world-class structural integrity. The patented thin-oil vibrator reduces bearing temperatures by 30% and extends service life. Maintenance is simplified to monthly oil checks.

Advantage

  • Military-Grade Construction: Side plates forged from specialized DH36 alloy steel withstand abrasive mining environments, preventing structural fatigue.
  • Patented Maintenance-Free Vibrator: Monthly oil replenishment reduces labor intensity by 70% and extends bearing lifespan 2x industry averages.
  • Infinite-Life Beam Design: Post-weld heat treatment and end machining eliminate fracture risks, ensuring decades of service.
  • Zero-Loosening Rivet Technology: Hooke’s ring-groove rivets maintain component cohesion under continuous vibration, eradicating downtime.
  • Imported Synchronized Drive System: High-reliability timing belts enable smooth power transmission and 10-minute spare swaps.
  • Science-Backed Performance: Optimized amplitude/frequency via mining academia collaboration boosts screening efficiency by 15–22% over conventional models.
Model Screen Plate Max.Input Size Capacity Electrical Motor
Layer(s) Area(m2) Mesh Size(mm) (mm) (t/h) Power(kw) Qty(pcs)
2SYKH2160 2 12.6×2 3-80 200 60-400 30 1
3SYKH2160 3 12.6×3 3-80 200 60-400 37 1
2SYKH2460 2 14.4×2 3-80 200 90-500 37 1
3SYKH2460 3 14.4×3 3-80 200 90-500 37 1
2SYKH3075 2 22.5×2 3-80 200 150-700 37 1
3SYKH3075 3 22.5×3 3-80 200 150-700 30 2
2SYKH3685 2 30.6×2 3-80 200 180-1100 45 2
3SYKH3685 3 30.6×3 3-80 200 180-1100 55 2
2SYKH40100 2 40×2 3-80 200 210-1500 75 2
3SYKH40100 3 40×3 3-80 200 210-1500 75 2

Note: The aforementioned data is for reference only and should not be construed as a natural commitment from the equipment supplier; due to significant variations in rock or ore, the actual production results may differ considerably from the data presented in the table. For specific applications, please contact the Technology Center of Zhenyuan Technology.
