Linear Vibrating Screen

Introduction
Parameters

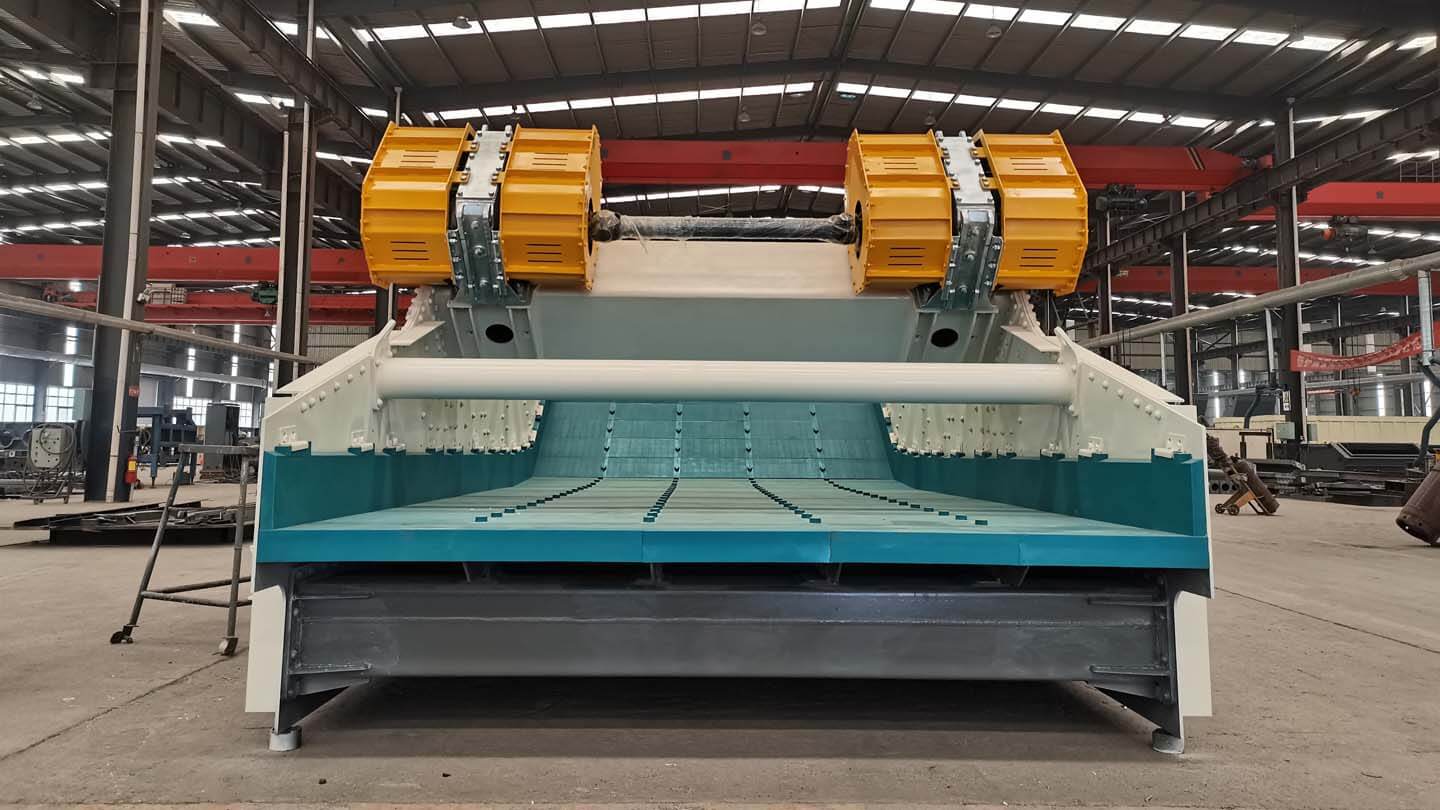

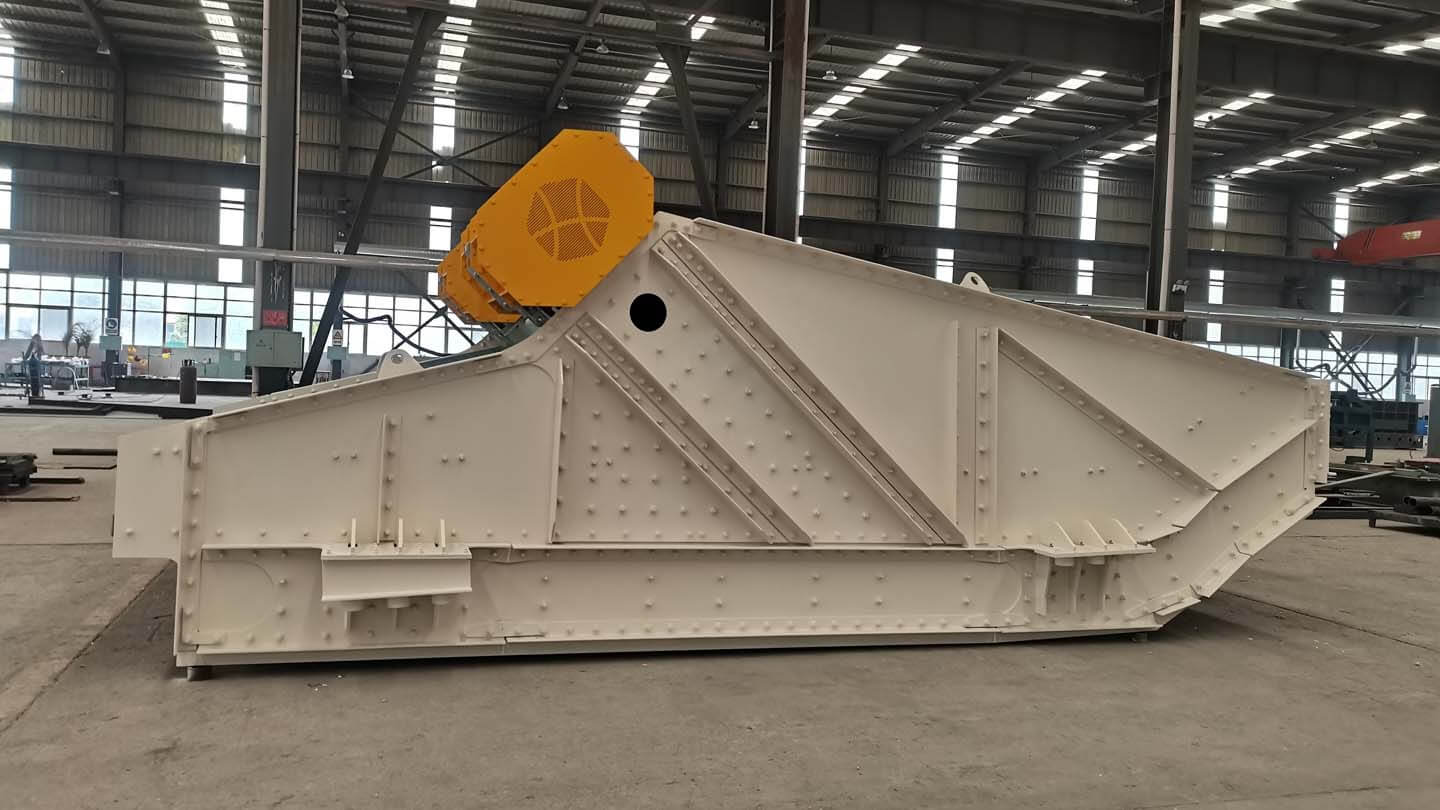

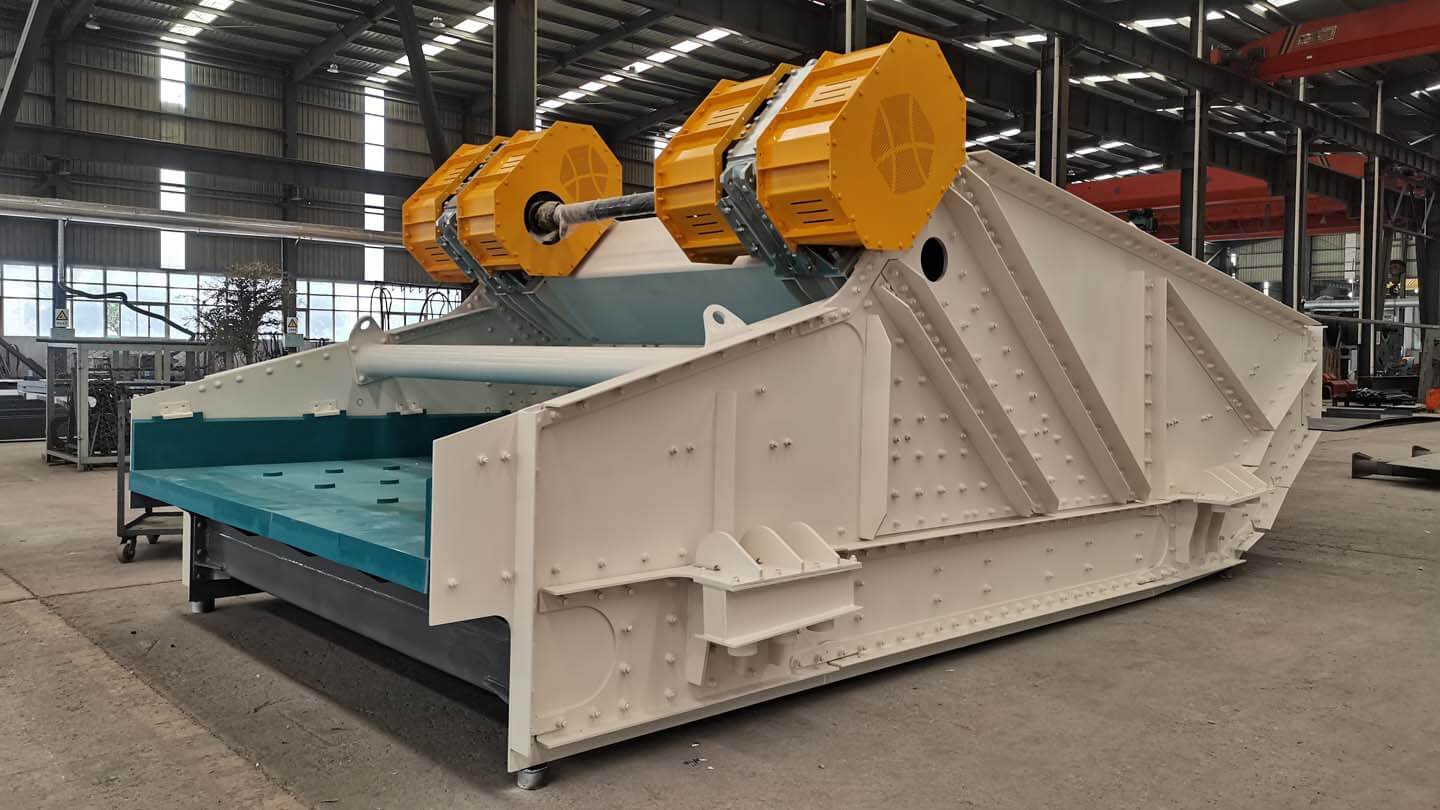

Meet the Zhenyuan DZX Series Large Linear Vibrating Screen – the industrial workhorse engineered for relentless dewatering and precision classification. This next-gen powerhouse transforms operations in coal prep plants (slurry recovery, dewatering, desliming), mineral processing (tailings dewatering), and manufactured sand facilities (water-washed sand dewatering). It expertly handles diverse medium-to-fine materials. Blending cutting-edge international design principles with rigorous adaptation to demanding on-site realities, the DZX delivers unparalleled robustness tailored for your toughest screening challenges.

Forged for endurance, its core construction sets new standards. High-precision laser cutting ensures flawless side plate integrity, while fatigue-resistant rivet construction replaces traditional welding, banishing stress points for exceptional longevity. The rigid rectangular hollow crossbeams, stress-relieved post-weld and shielded by polyurea or ultra-tough TIPTOP rubber, defy impact, corrosion, and abrasive wear where it matters most. Powering it all is a flexible box-section exciter beam, built to channel immense force from our advanced oil-bath exciters.

Advantage

  1. Fatigue-Proof Build: Laser-cut precision & riveted assembly eliminate welding stress, maximizing structural integrity and lifespan.
  2. Ultimate Crossbeam Protection: Polyurea-coated or TIPTOP rubber-bonded lower beams resist severe impact, corrosion, and abrasion.
  3. Unshakable Exciter Stability: Oil-lubricated, sealed exciters with SKF/FAG bearings & hardened gears ensure smooth, maintenance-minimal operation.
  4. Superior Structural Rigidity: Stress-relieved, rectangular hollow crossbeams deliver exceptional strength and safety.
  5. High-Force Vibration Efficiency: Flexible box-design exciter beams & reinforced flanges handle massive excitation forces reliably.
  6. Quick-Change Versatility: Modular screen panels enable fast replacements and configuration flexibility.
  7. Durable Vibration Control: Heavy-duty seat-mounted steel coil springs provide excellent damping and long service life.
Model Screen Plate Max. Input Size Capacity Electrical Motor
Layer(s) Area(m2) Mesh Size(mm) (mm) (t/h) Power(kw) Qty(pcs)
DZX1848 1 8.64 0.5-15 100 40-100 22 1
2DZX1848 2 8.64×2 Upper:3-50 Lower:0.5-15 100 70-300 30 1
DZX2448 1 11.52 0.5-15 100 40-120 30 1
2DZX2448 2 11.52×2 Upper:3-50 Lower:0.5-15 100 100-450 45 1
DZX2461 1 14.64 0.5-15 100 40-130 37 1
2DZX2461 2 14.64×2 Upper:3-50 Lower:0.5-15 100 100-550 45 1
DZX3061 1 18.3 0.5-15 100 40-300 45 1
2DZX3061 2 18.3×2 Upper:3-50 Lower:0.5-15 100 100-700 55 1
DZX3661 1 21.96 0.5-15 100 40-370 55 1
2DZX3661 2 21.96×2 Upper:3-50 Lower:0.5-15 100 100-830 75 1
DZX4361 1 26.23 0.5-15 100 40-450 55 1
2DZX4361 2 26.23×2 Upper:3-50 Lower:0.5-15 100 100-950 75 1

Note: The aforementioned data is for reference only and should not be construed as a natural commitment from the equipment supplier; due to significant variations in rock or ore, the actual production results may differ considerably from the data presented in the table. For specific applications, please contact the Technology Center of Zhenyuan Technology.
