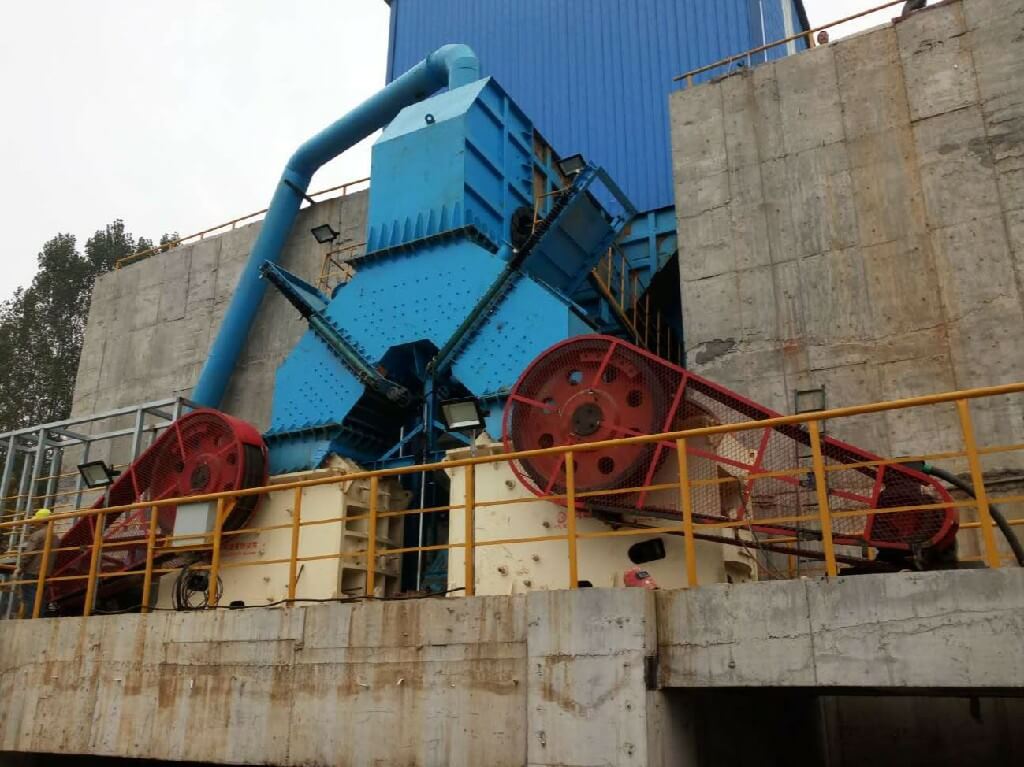

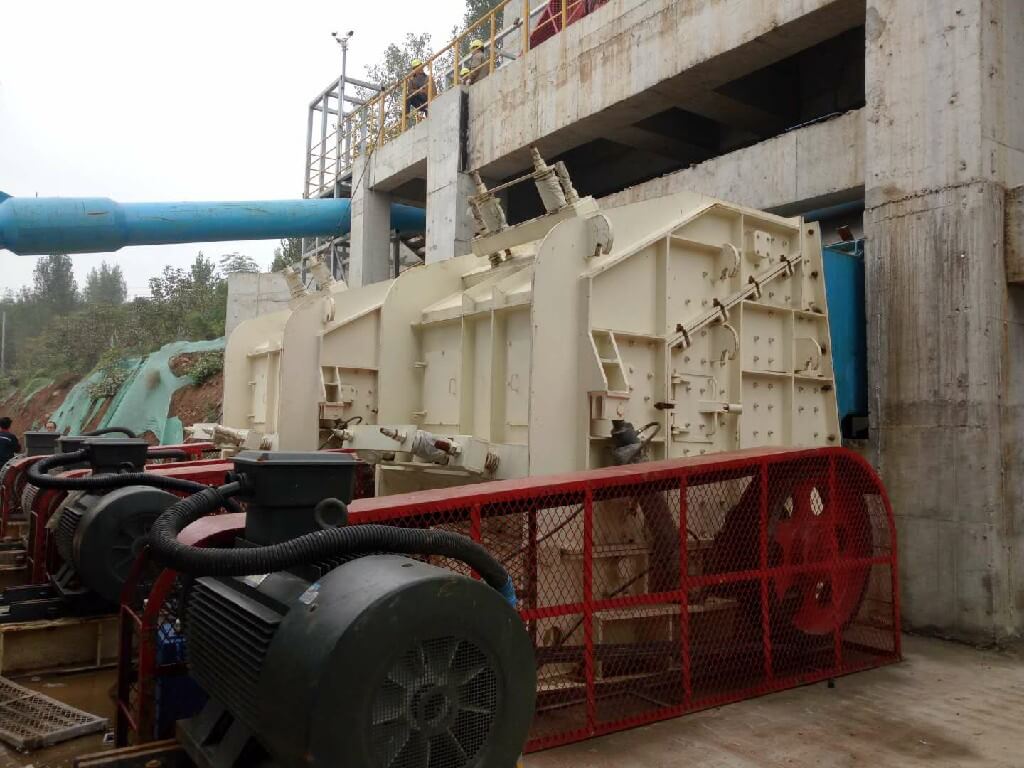

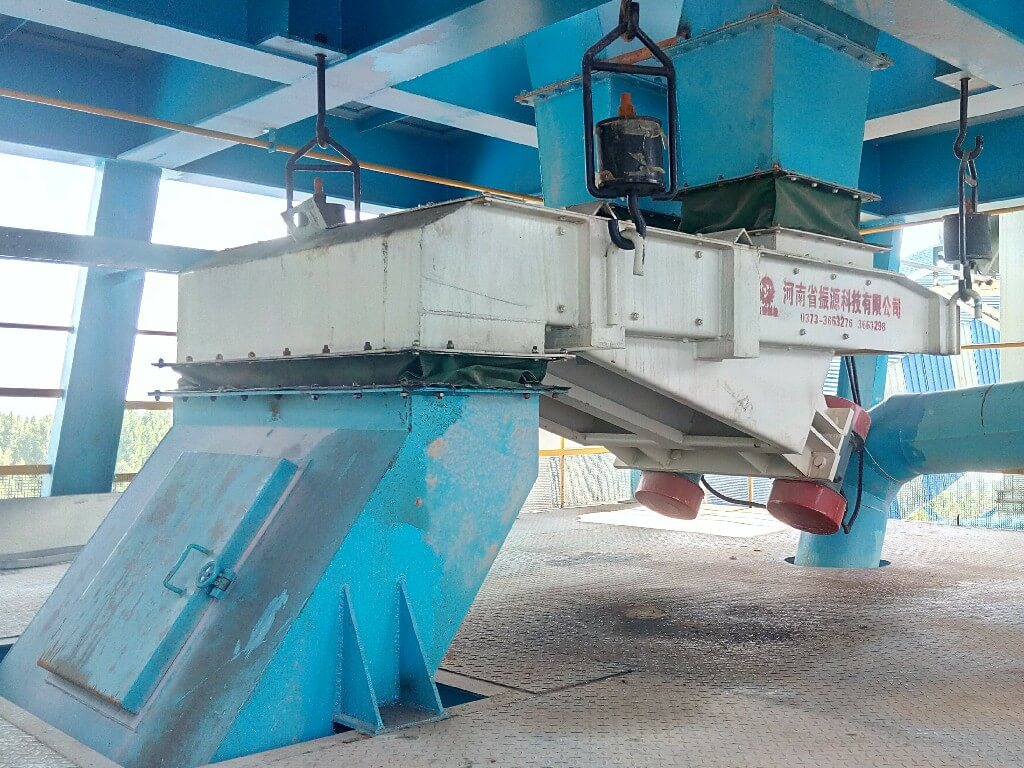

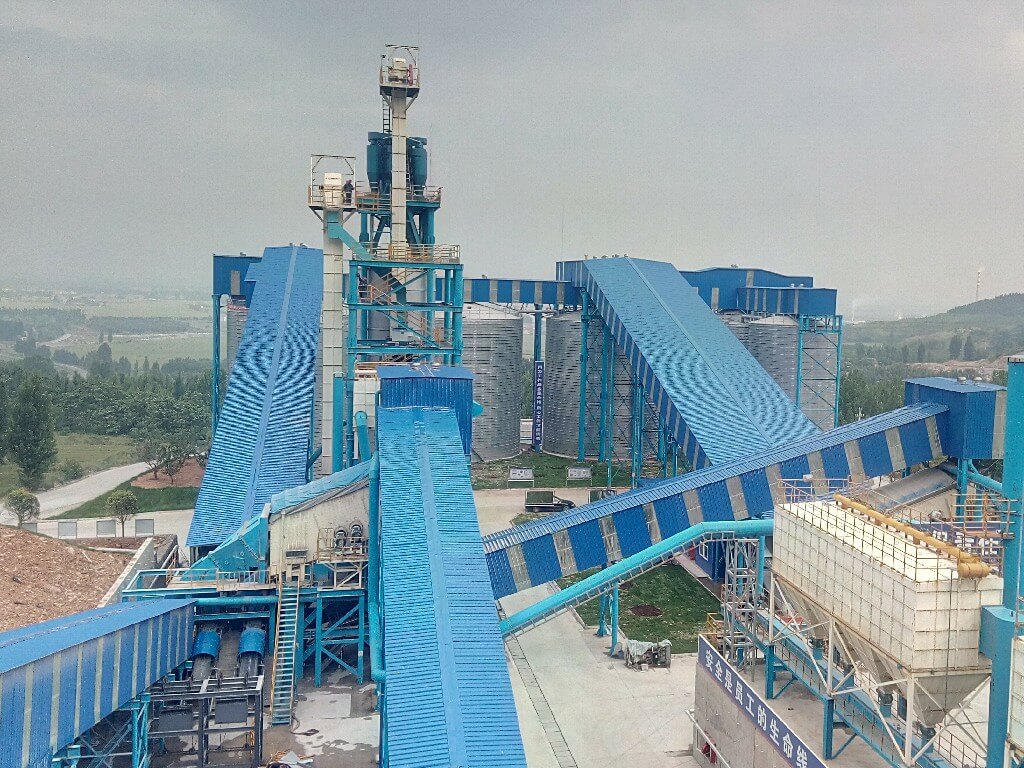

Engineered by Zhenyuan Technology, the sand and aggregate production facility in Jiyuan, Henan features a robust processing system designed for dolomite material. This high-capacity plant incorporates a heavy-duty feeding mechanism, two-stage crushing process, and dual screening stages to transform 0-1000mm dolomite raw material into multiple graded aggregates. The production line achieves an impressive throughput of 1000 tons per hour, delivering finished products in five specific sizes: 0-5mm, 5-10mm, 10-20mm, 20-30mm, and 30-70mm. Key equipment configuration includes: one ZBWJ16008.5m apron feeder for consistent material handling, two PE9001200 jaw crushers for primary size reduction, two PF1520 impact crushers for secondary shaping, and two 3SYKH3075 circular vibrating screens for precise gradation control. This integrated setup ensures efficient material processing from initial feeding to final product classification, meeting the stringent requirements of construction aggregate production.
- Material: Dolomite
- Input Size: 0-1000mm
- Output Specification: 0-5mm/5-10mm/10-20mm/20-30mm/30-70mm
- Capacity: 1000TPH
